Irrigation & Fertigation Controllers

Talgil irrigation, fertigation, back-flush and special-purpose controllers, plus Galcon controllers for municipal, agricultural and home applications.

Sadot Irrigation Systems is the chief distributor for Talgil Computing & Control — Israel, and a joint developer and partner for many of Talgil’s developments. We also distribute the Galcon line of controllers.

Irrigation & fertigation

Talgil professional controllers, from Piccolo to Dream, AC and DC.

Talgil controllers

Back-flush controllers

For automatic filters & batteries, triggered by time, DP or volume.

Filtration control

Galcon controllers

Municipal, agricultural and home-garden controllers.

Galcon

Talgil Computing & Control

Irrigation & fertigation controllers

All controllers are for professional applications and minimally perform: volumetric/time-based irrigation, 3-phase proportional fertigation, volumetric/time-based fertigation, flow control, independent program per valve, leakage & pressure control, pulsed irrigation, automatic filter back-flush and failure indication/messaging.

Model	AC outputs	DC outputs
Piccolo	5	5
Element	8	8
Sapir	20 / 32	12 / 24 / 32
Meteor	6 / 8 / 10 / 18 / 20 (2+N, 3+N, 4+N)	—
Sapir 12++	up to 252	—
Topaz	20 / 32	—
Dream	up to 250	16 … 252 / up to 500

In the Meteor controller: 2+N = 1 master valve + 1 fertilizer injector + N valves/filters; 3+N = 1 master valve + 2 injectors + N; 4+N = 1 master valve + 2 injectors + 1 alarm + N.

Talgil Topaz controller and command solenoids

PC software & logging

Remote programming, monitoring and data logging on supported models.

Filter back-flush

Automatic control of filters & batteries by time, pressure differential or volume.

Sapir MonoCable

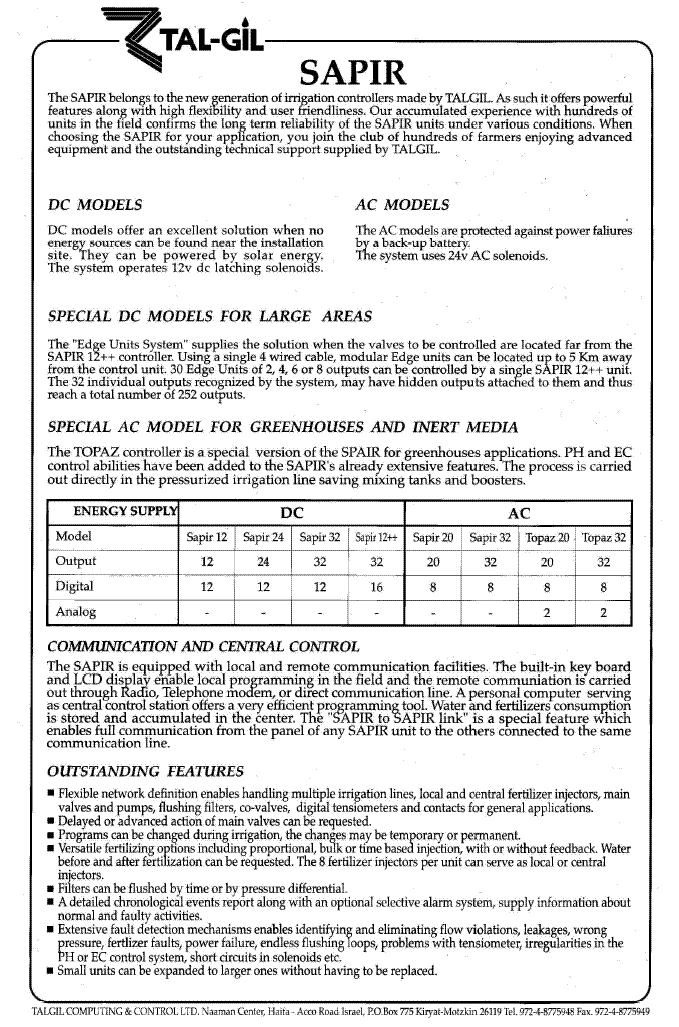

Sapir 12++ MonoCable systems reaching up to 252 outputs. Catalog in Downloads.

Talgil

Filtration back-flush & special-purpose controllers

Back-flush controllers

For operating automatic filters or batteries of filters, based on time intervals and/or a pressure-differential (DP) gauge. In large systems, flushing can be triggered by volume intervals. AC & DC models range from 1 output (single filter) up to 44 outputs for large filter combinations.

Fertomat

An AC controller performing complicated fertigation tasks, installable as an add-on to any controller on the market.

Fogger / Frost

Fogger — AC controller for fogging systems (up to 5 outputs) with continuous temperature & humidity sensors. Frost — DC controller for frost protection with a continuous temperature sensor.

Agrotal

An AC/DC fertigation controller performing complicated fertigation tasks without supportive equipment such as water & fertilizer meters.

Galcon

Galcon controllers

Distributed by Sadot for municipal gardens & parks, home gardening and agricultural applications, plus control accessories.

Municipal & landscape (series 6000 / 2000 / 8000)

6000 series (DC): 6001, 6004, 6006 — battery-operated smart controllers for lawns, public gardens, traffic islands and stadiums. 6009 / 6012 available with outdoor box.
8000 series (AC): 8009, 8012 — mains-operated controllers with outdoor box for public gardens, indoor plants and shopping malls.
2010 & 2015 EZ: simple 2-selector operation, 5–60 min to 12 h duration, cycles from every 45 min to every 14 days; low-battery protection (2015).

Agricultural (6050 series)

6051 / 6054 / 6056 / 6059 / 60512 — 1, 4, 6, 9 & 12 stations, battery operated (two 9 V alkaline).
Waterproof & weather resistant; weekly or cyclical programming; up to 4 start times per station; duration 5 s–12 h; frequency once a minute to once in 30 days.
Independent program & sensor connection per valve; operates ¾"–3" 2W hydraulic valves or 1/8" 3W command valves.

Home gardening

7001 — “the jewel in the garden”: decorative battery controller for drip & sprinkler; series 6000 (6001/6004/6006), 8000 (8004/8006) and 2000 series (2002/2007/2010EZ).

Accessories: model 3313 1/8" 3W command valve with Galcon solenoid.
